亞陶石英晶體振蕩器UF系列超低抖動，微型，晶體振蕩器是用于高性能計算和網絡的前沿要求最苛刻的行業 高級應用。Automotivecompliant變體可用。這種新型晶體振蕩器支持廣泛的應用要求非常低的噪音采用最小的工業標準封裝之一。較大的包裝也可滿足靈活設計需求。有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及2.5V和3.3V的電源電壓，提供客戶指定的頻率高達212.5MHz，溫度穩定性達到25PPM。
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器，可節省電路板空間。小體積晶振尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器，該系列由具有超低抖動性能的高性能LVPECL差分晶振晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范.

FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm

UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
特征：

超低相位抖動晶振

0.05ps 典型值。0.07ps RMS最大值（12kHz至20MHz）

擴展溫度范圍高達125℃

完全無鉛且完全符合RoHS標準

不含鹵素和銻。“綠色”設備

應用程序：

網絡系統

光模塊

服務器和存儲系統

專業視頻設備

測試與測量

FPGA/ASIC 時鐘生成

112G 串行應用

FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm

FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm

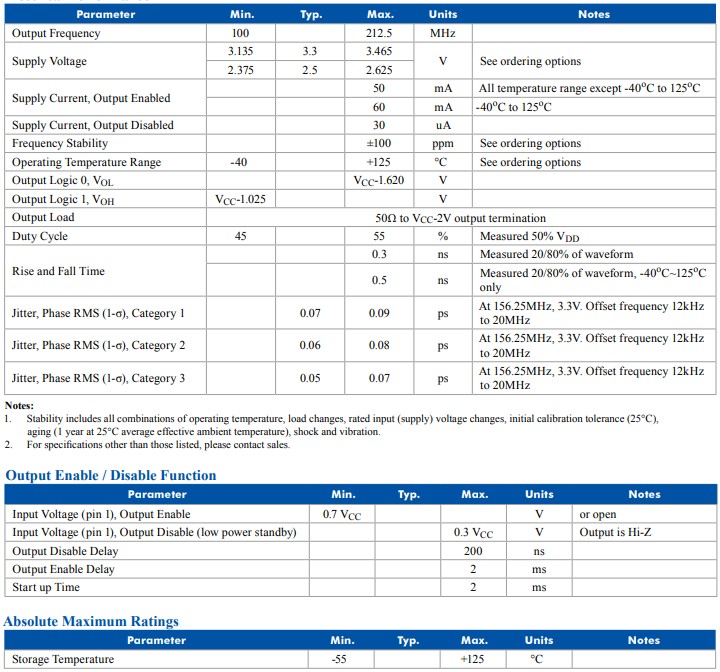

Product Parameters

Stability (PPM)	20 to 100

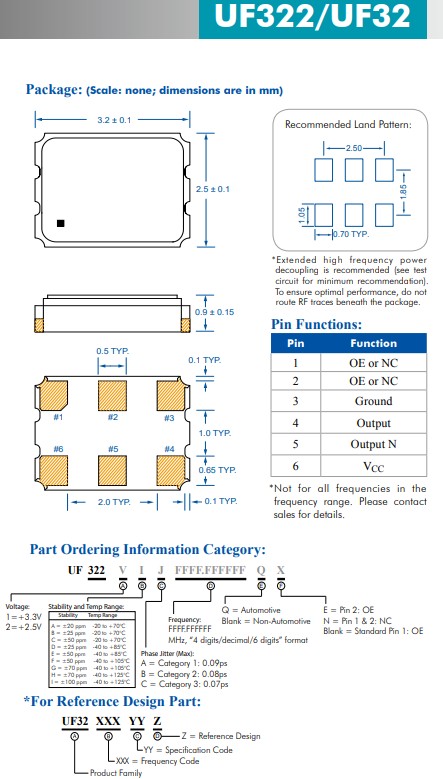

Package Size (mm)	3.2 x 2.5 x 0.9
PkgType	Ceramic Seam
Freq Range (MHz)	100 to 212.5
Jitter RMS (ps)	0.07 to 0.09
Output Logic	LVPECL
Supply Voltage (V)	3.3, 2.5
Pads	6
ProductSeries	UF3

UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
產品參數：

穩定性 (PPM) 20到100

包裝尺寸 3.2x2.5x0.9mm

包裝類型陶瓷縫

頻率范圍 (MHz) 100至212.5

抖動均方根 (ps) 0.07至0.09

輸出邏輯 LVPECL差分晶體振蕩器

電源電壓 (V) 3.3, 2.5

墊 6腳

產品系列 UF3

FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm
FN3300073	Diodes Incorporated	SaRonix-eCera™ FN	33MHz	±50ppm
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm

UF系列為高速提供超低抖動

為高性能應用提供盡可能小的封裝。

UF系列XO石英晶體振蕩器

超低均方根抖動(典型值低至50fs)

超過苛刻應用的要求，并且

提供廣泛的設計余量

2.5毫米x 2.0mm毫米大小的包裝:

優化電路板空間以支持微型系統設計

寬溫度范圍(-40°C至125°C)

符合汽車行業標準(符合AEC-Q104)的版本

支持在惡劣環境中運行的加固設備設計

應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCI 5.0架構，系統，服務器和存儲系統，專業視頻設備，F(xiàn)PGA/ASIC參考時鐘，發電機
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器

NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb

UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
我們的晶體振蕩器 (CXO) 提供高價值、卓越的性能和功能以及卓越的品質和服務。我們?yōu)榕可a(chǎn)提供快速周轉樣品、響應式技術支持和快速交貨時間。

提供多種類型和特性：

1) 尺寸從7x5mm到2.0x1.6mm，

2) 傳統CXO的溫度穩定性為±5PPM，

3) CMOS/TTL、LVPECL、LVDS、HCSL的輸出邏輯格式，和慢性粒細胞白血病。

我們的CXO被領先制造商用于各種要求苛刻的應用，從消費類到工業、汽車 (AEC-Q200/AEC-Q104)、網絡、存儲、計算、電信等
